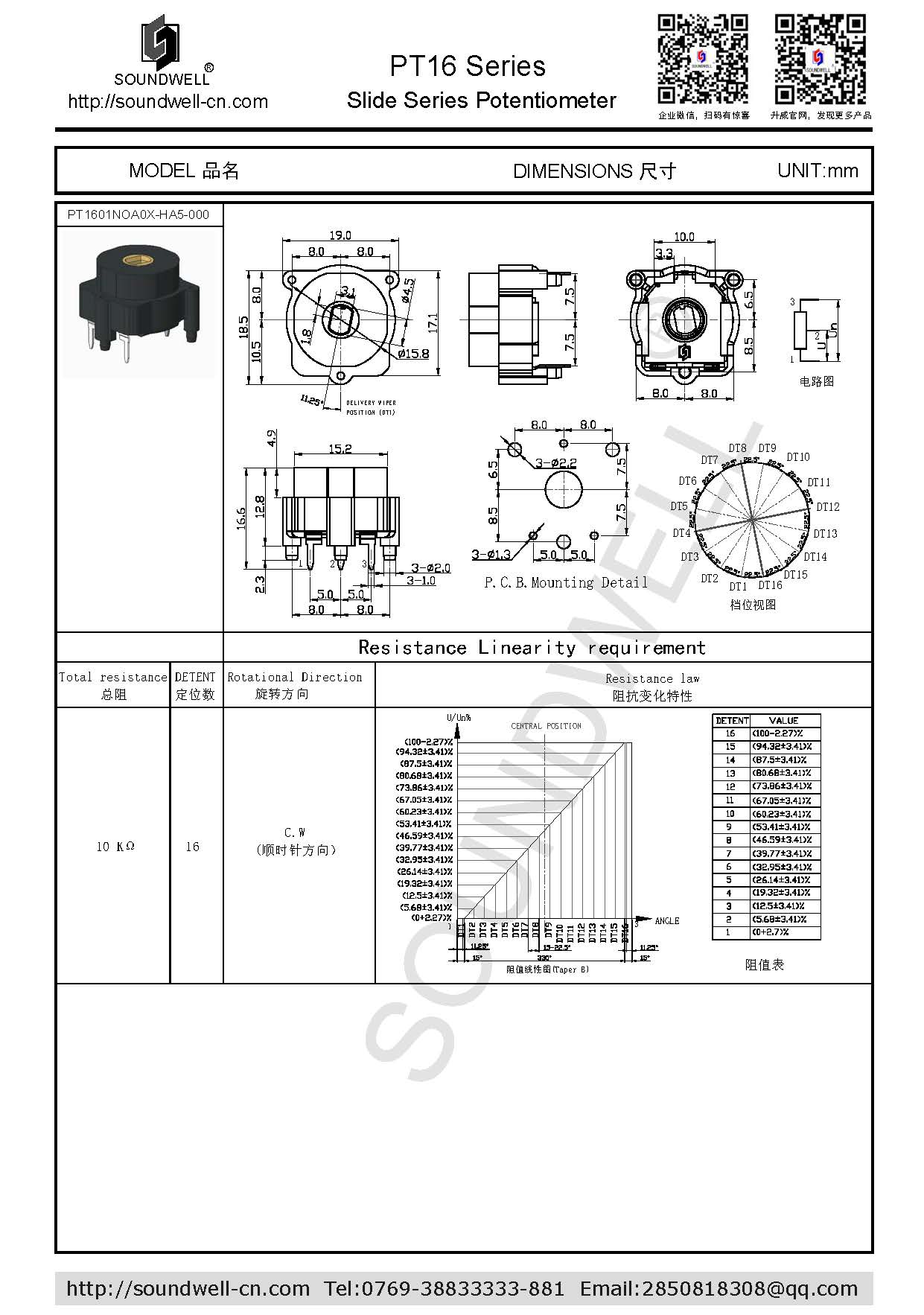

| Potentiometer model： | PT16 series |
| Name： |
PT16 Rotary Trimmer Potentiometer |
| Main Specifications: | Dimensions: 16mm; Number of detent: 16; Total resistance: 10KΩ; Residual resistance: R1,2: ≤ 10 Ω；R2,3: ≤ 20 Ω; Resistance Taper: B; Operating temperature: -25℃ ～70℃; Rotational life: 10,000 cycles Min; |
| Product Features： |
The resistance value can be adjusted by rotation to adjust the input voltage or current. |
| Applications： |
Household appliances such as clothes dryers and other related electronic devices. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque:5±1mN.m
2. Total Rotational Angle: 360°
3. Number of detent: 16
TWO、ELECTRICAL CHARACTERISTIC
1. Total resistance: 10KΩ
2. Dielectric Voltage: 1 Minute at AC 250V
3. Residual resistance: R1,2: ≤ 10 Ω；R2,3: ≤ 20 Ω
THREE、ENDURANCE CHARACTERISTIC
1. Rotational Life: 10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
